How to Curve Text in DesignScape

Modified on Thu, 14 Sep, 2023 at 12:38 PM

Learn how to curve text in DesignScape with this beginner friendly tutorial

In this tutorial we will show you two ways to curve text in DesignScape. You can use either the Pen or the Shapes Tool to curve the text. DesignScape is a browser based alternative to Photoshop and Illustrator that is available with the Pro and Unlimited Plus Membership plans.

Let’s begin by creating a new document in DesignScape.

Method 1 - Use the Shapes Tool to Curve Text

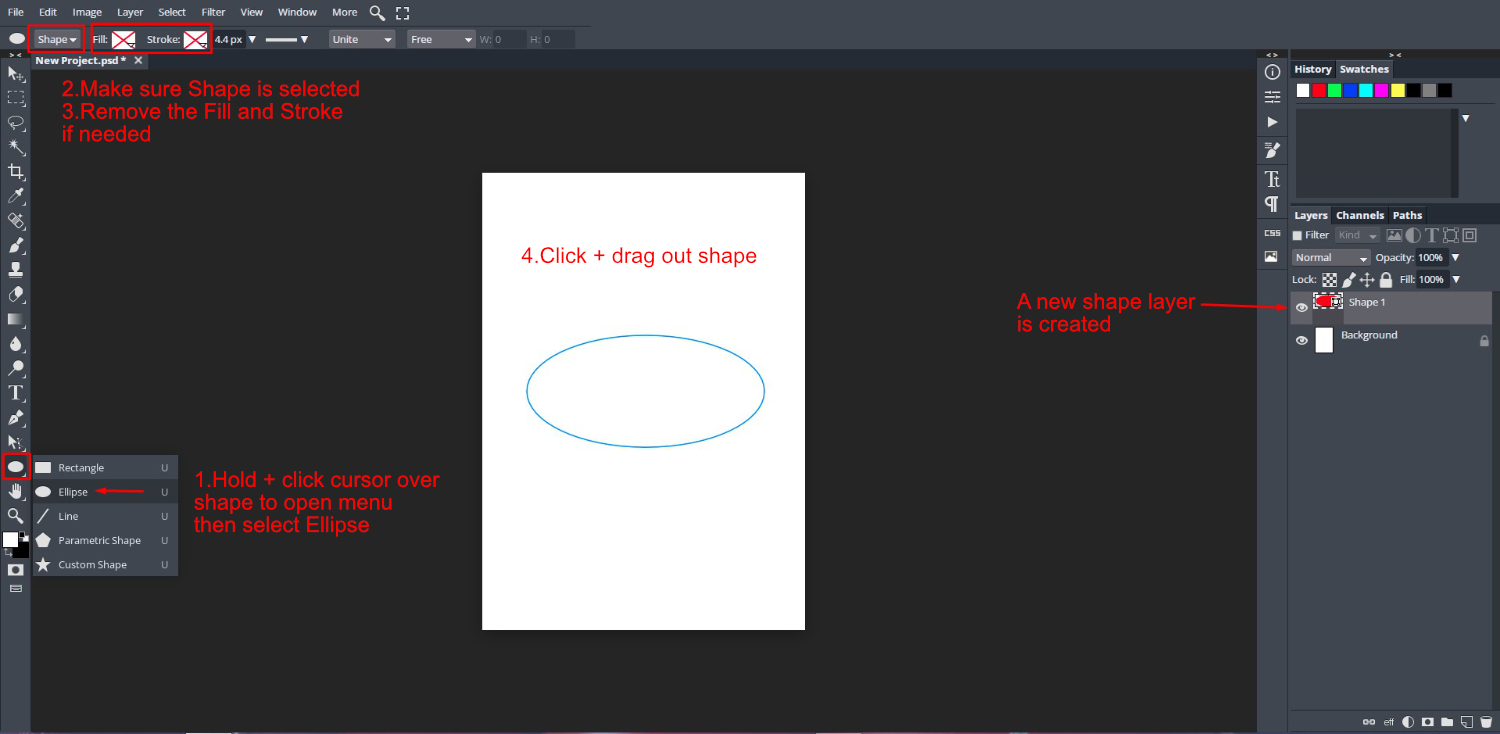

We will start off by creating a simple shape in DesignScape. We chose to use the Ellipse shape and selected it from the Shapes menu on the left side toolbar. Be sure to select Shape and remove the Fill and Stroke on the top toolbar.

How to Curve Text in DesignScape 15

Step 1: Select the Type Tool

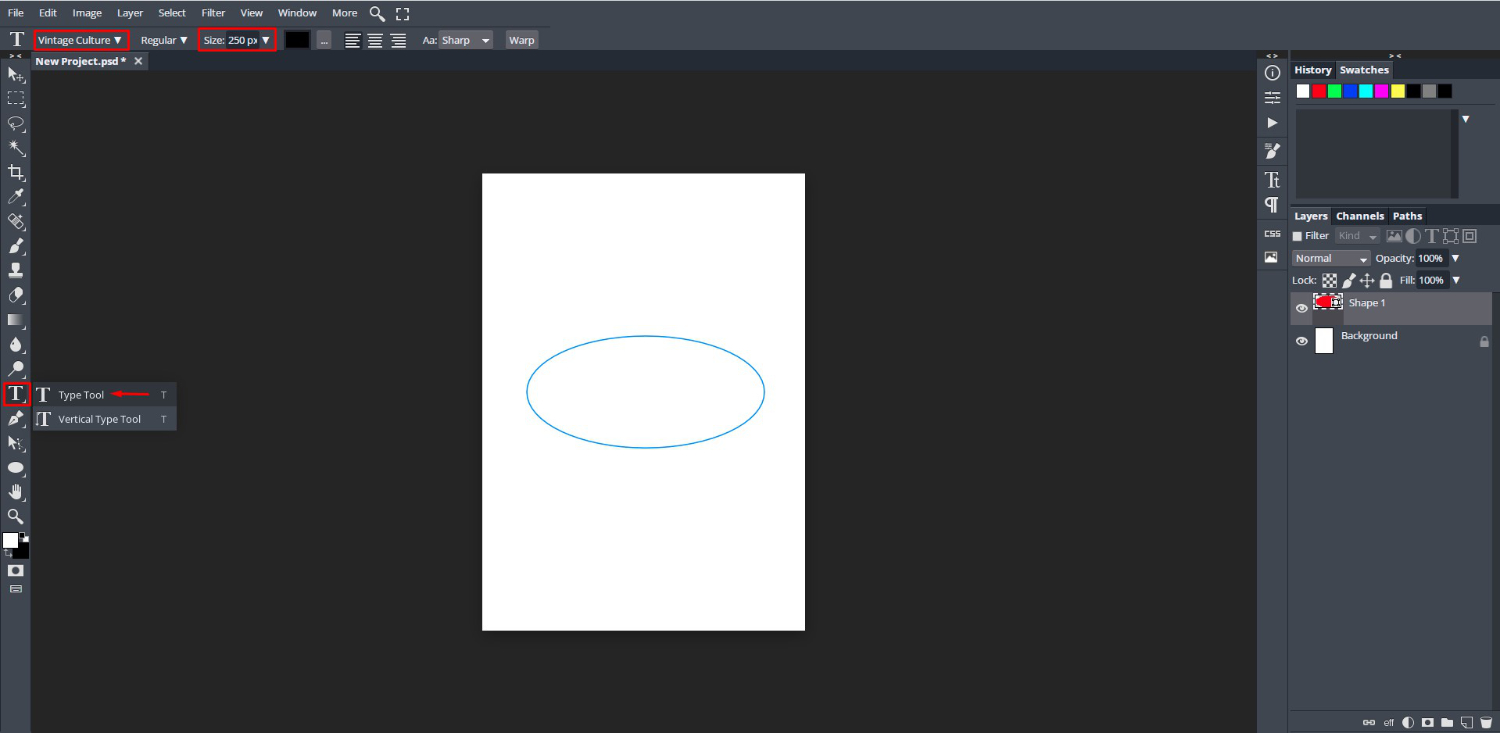

For both processes of curving text, we will be using the Type Tool. This can be found on the left side panel with a capital letter “T” icon. Click + hold your cursor over the text menu to open, then select the Type Tool.

At the top toolbar, choose your font from the Font Family and adjust the text size. The text size slider will only go to 150px but you can input a value in the box. We used 250px.

How to Curve Text in DesignScape 15

Step 2: Type Text on Curved Shape

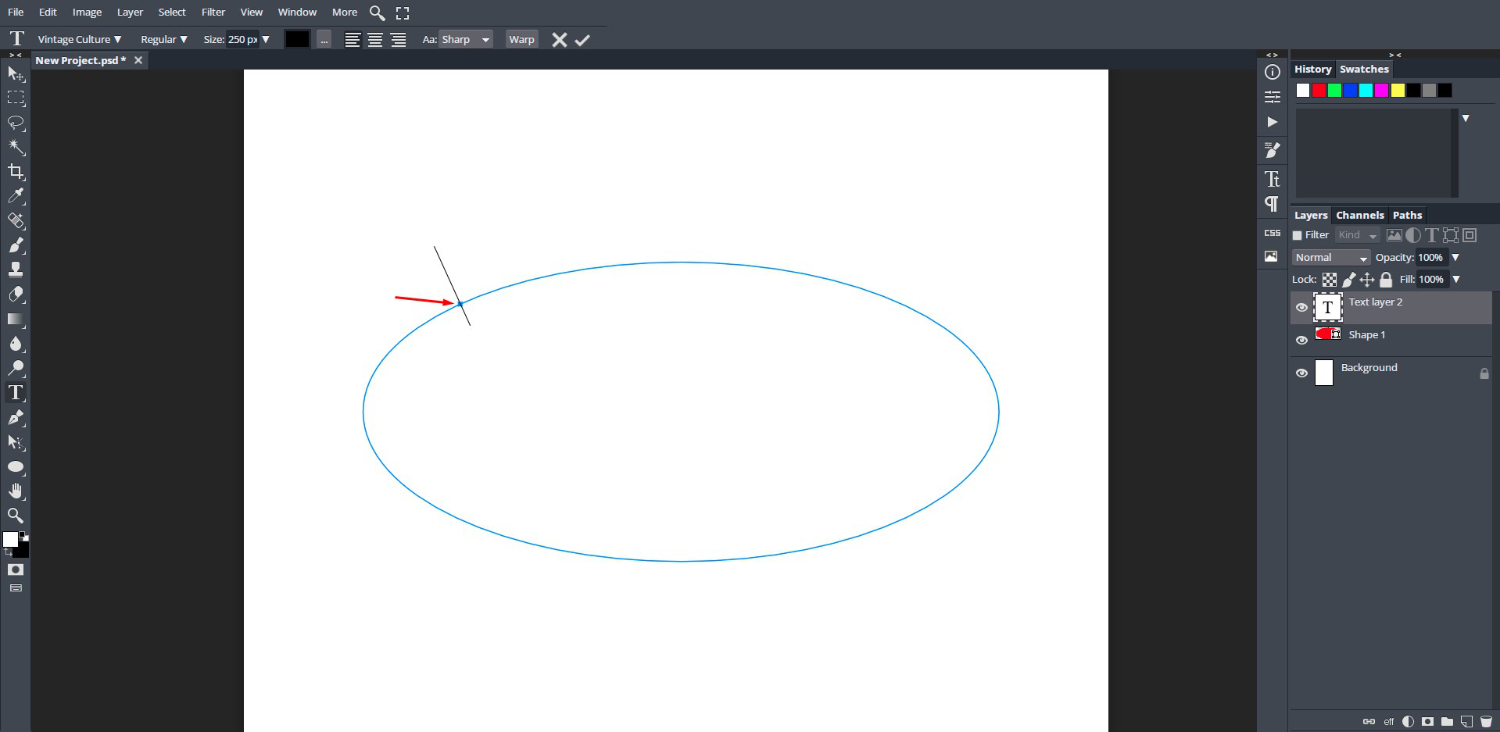

Now, position your cursor over the line of the shape and click once. You will enter text edit mode and will see a small blue crosshair with a circle appear. The circle is the end point of your text while the crosshair is the starting point. We will move these apart later.

How to Curve Text in DesignScape 15

You can now begin typing your text.

How to Curve Text in DesignScape 15

Step 3: Adjust the Text Curve

We want to adjust the curve of the text so it sits in the middle. First we need to click on the Path Select tool in order to move the curved path. On the left side toolbar, just below the text tool, click and hold on the Select menu. Now click on Path Select.

How to Curve Text in DesignScape 15

The Path Select tool selects the path that the text is on and allows you to adjust the text curve. Click on the blue crosshair/circle and drag to the right. You will see that the circle separates from the crosshairs. We will place this at the end of our text.

Now click + drag the blue crosshair at the beginning of the text to the left. Be sure to keep your cursor above the shape line so the font stays above the line.

If you move your cursor below the shape line, the font will be placed inside the shape. The start point will then switch around and become the end point.


Step 4: Use Direct Select to Edit the Shape

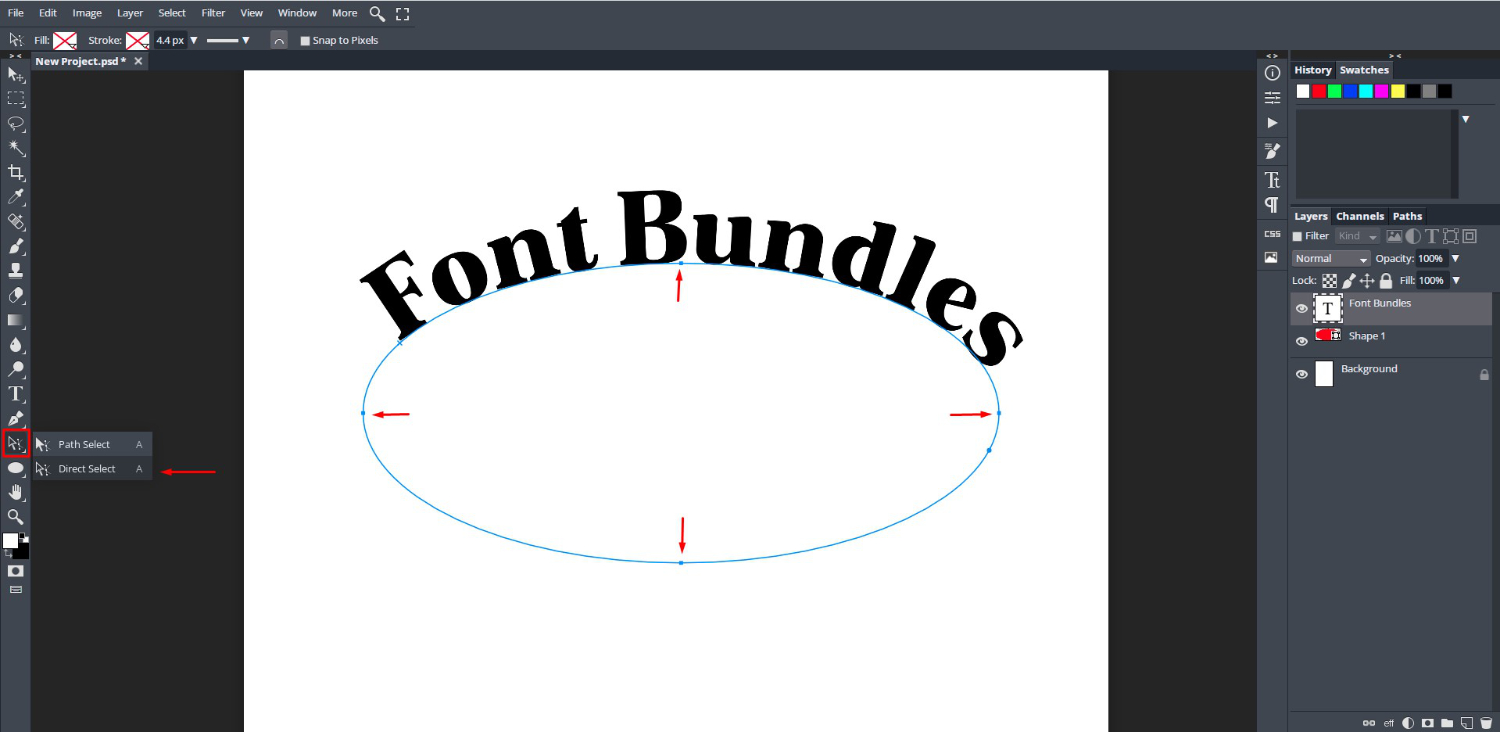

To edit the Ellipse shape that creates the text curve, we need to use the Direct Select tool. If you used the Move Tool, it would only adjust the shape and not the text curve as well. The Direct Select tool selects the shape, which is shown by the nodes on the sides and top.

How to Curve Text in DesignScape 15

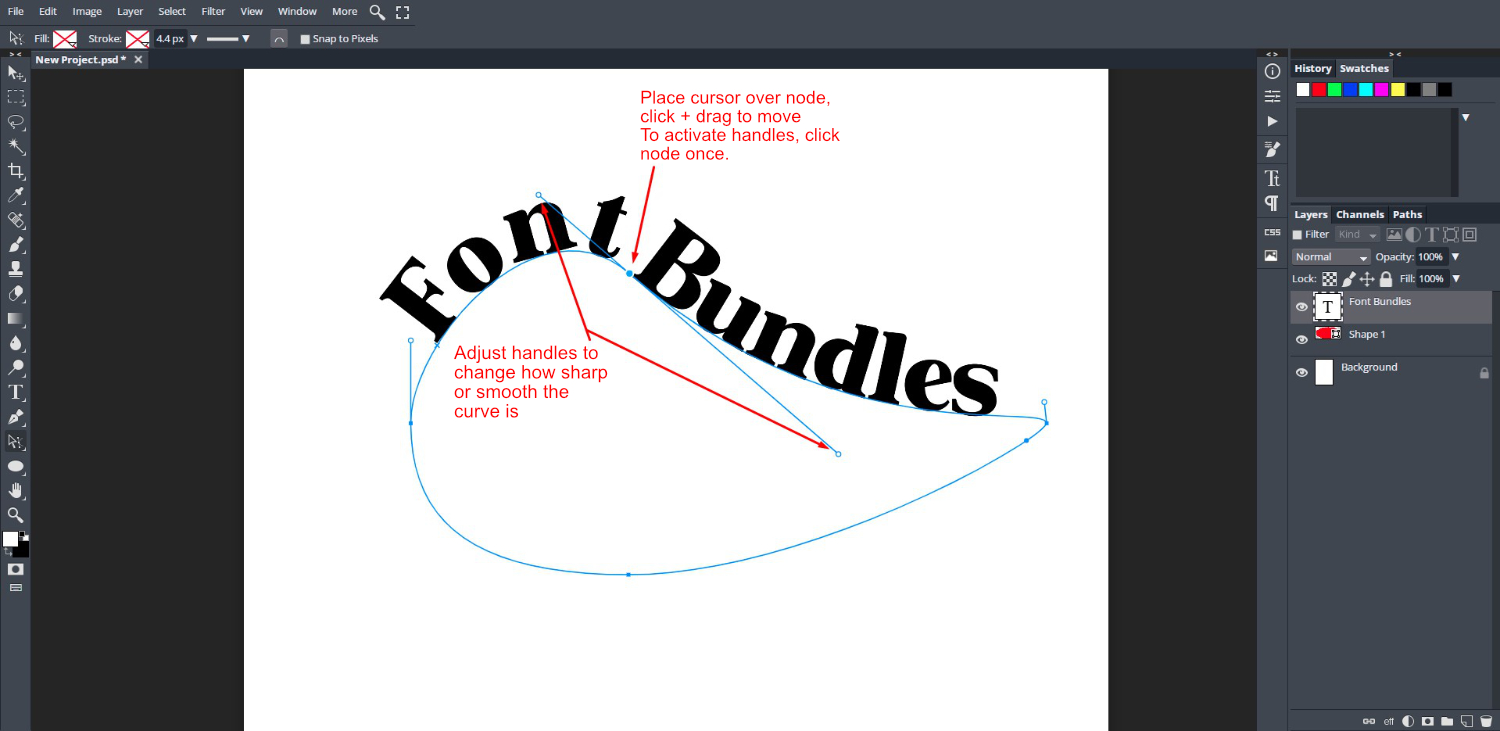

When you hover your cursor over one of the sizing nodes, it will increase in size. You can then click + drag the center node around or move the handles. If you only see one handle for the node, click on the node itself to activate both handles.

How to Curve Text in DesignScape 15

You can go ahead and delete the Shape layer as it’s no longer needed.

Method 2 - Use the Pen Tool

The Pen Tool allows you to create your own shape. There are two options, the Pen Tool and the Free Pen. The first is more constrained while the second is freehand. We chose to use the Pen Tool for a more controlled curve.

Step 1: Create a Curve for the Text

On the left hand side, click + hold on the Pen menu tool to open the options. Click on the Pen Tool to select it.

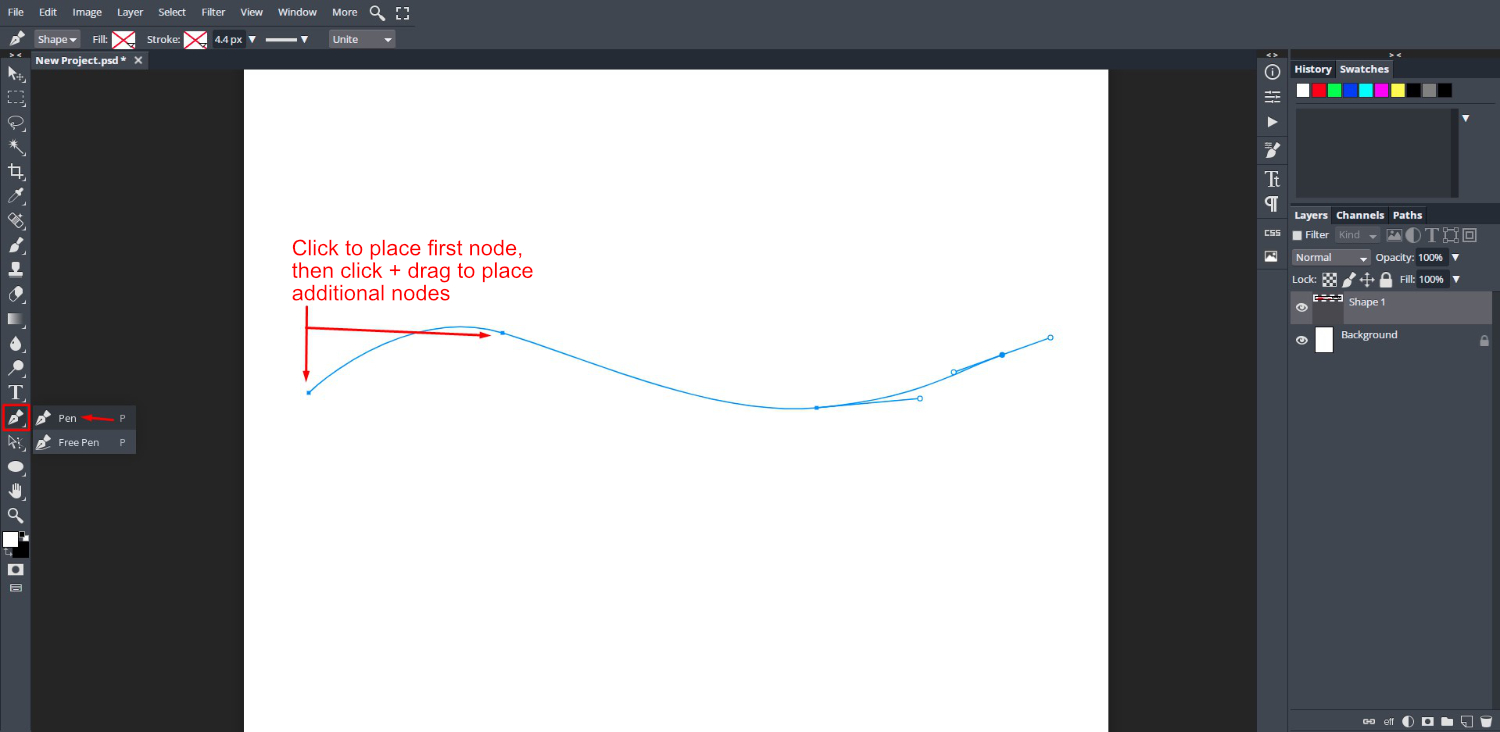

Now, click to place the first node then click + drag to place additional nodes. When you have created your line, press Enter on your keyboard.

How to Curve Text in DesignScape 15

You can add more nodes by clicking once anywhere on the curve line. To delete a node, all you need to do is click once directly on the node while the Pen Tool is still selected.

When your curve is ready, you can add your text.

Step 2: Add Text to the Curve

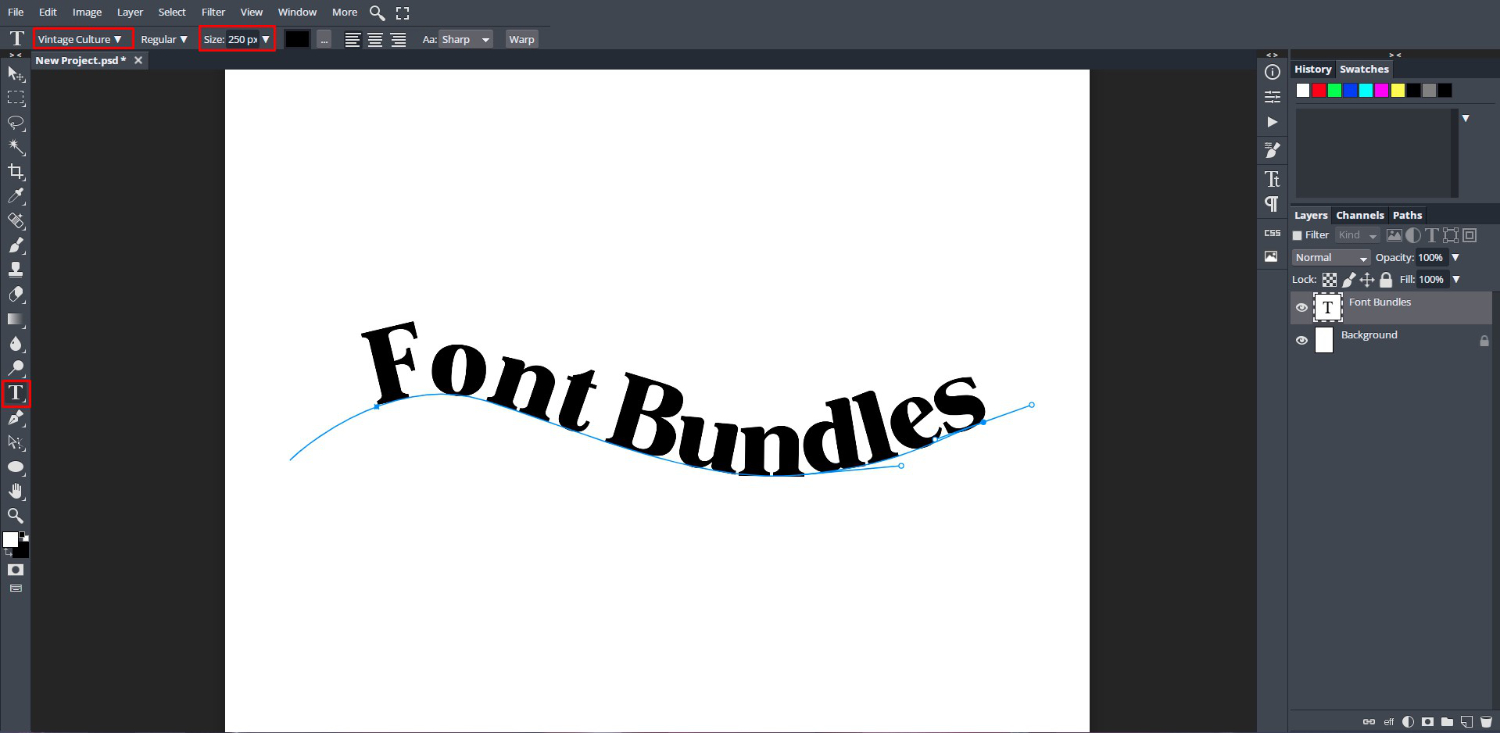

As we did with the first method, select the Type Tool then adjust your font and size. Now click on the curve line and start typing.

Once the text has been added, you can now delete the Shape layer if you want. It is no longer needed as the text has created its own curve.

How to Curve Text in DesignScape 15


Step 3: Move Start and End Points

Now, moving the start and end points gets a little tricky here. You have to be careful how far you move the end point.

As before, make sure Path Select is active. Then click on the crosshair/circle but this time drag slowly to the left. The circle or end point will separate from the crosshair or start point.

Remember, where your cursor is positioned as you are dragging will determine if the text is above or below the line.


The line curve can also be edited by using the Direct Select tool.

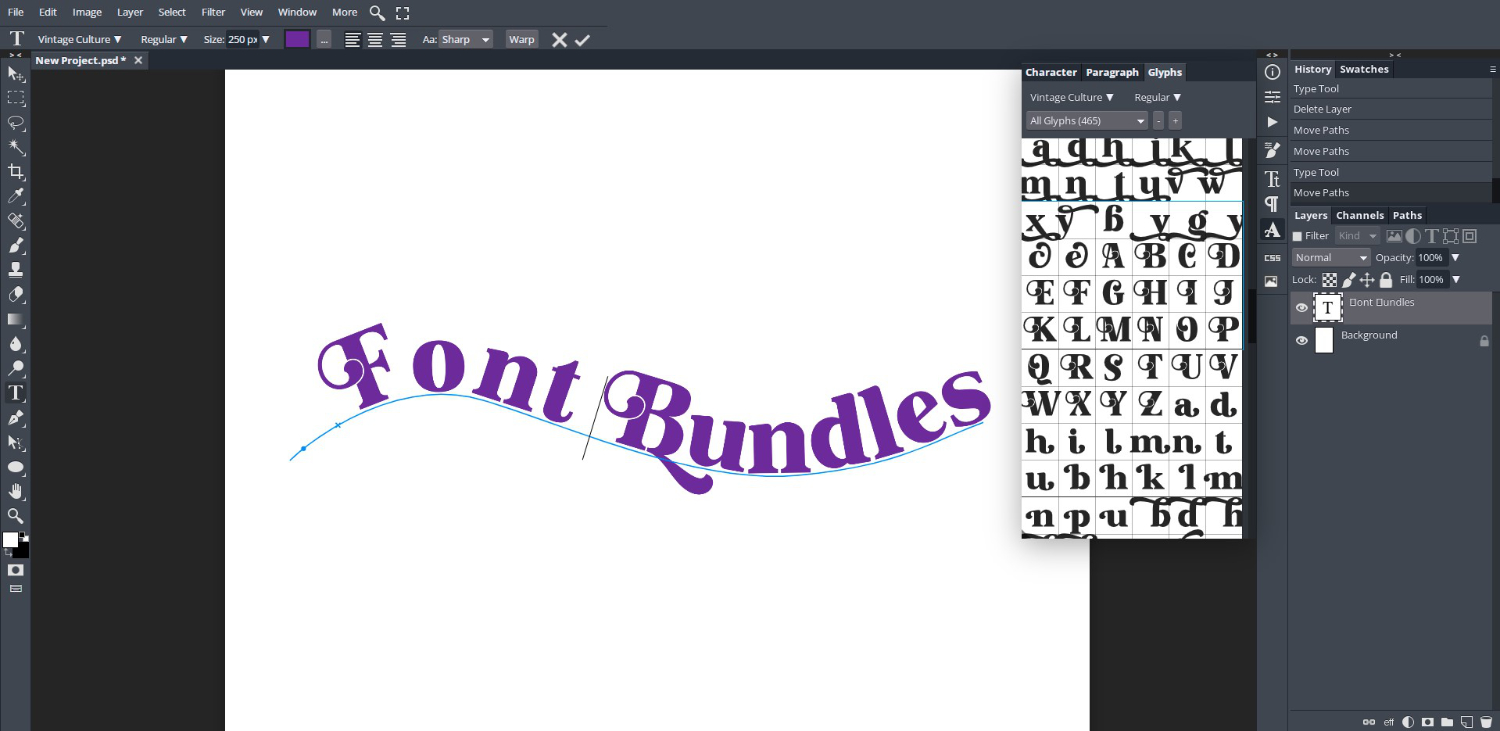

You can edit your text further with font leading or by adding alternate glyphs in DesignScape. Keep in mind that the position of the text curve will change. So you may need to adjust the end and start points again.

How to Curve Text in DesignScape 15

From there on you can convert to a Smart Object, convert to a shape or rasterize depending on your design needs.
